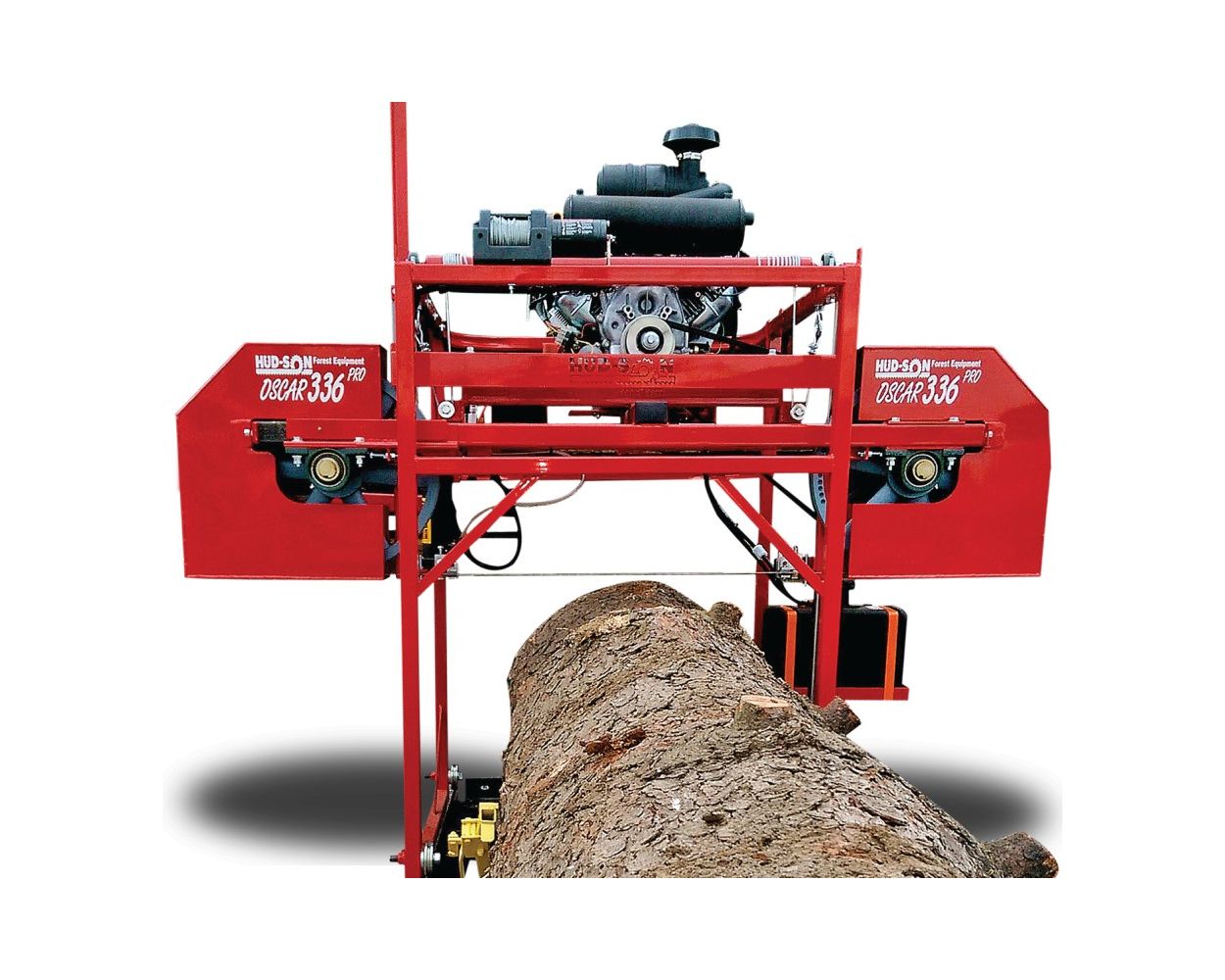

Oscar 336 Pro Sawmill
The Oscar-336 is a great mill for the average and advances sawyers. No matter what your needs for a sawmill might be time always plays a factor in ones needs. You could be under pressure of supplying customers or you just need to finish a project so you can take some time to relax. The Oscar 336 makes quick work of log-to-lumber and slabbing needs. Not only can the Oscar-336 give you impressive performance with the power height adjustment sawmill head performance comes with ease. The Oscar-336 features Hud-son’s Halo Frame design. This sleek design contributes to the strength and quality that is expected from a Hud-son Forest Equipment product. The Halo Design also accommodates the powerful engine options to keep up with the performance needs. A must have around the farm, ranch and woodlots. The Oscar 336 boasts a 23 HP V-twin overhead valve motor allowing you to slice through any wood up to 36″ in diameter. Want more power? Other engines options include a 35hp available motor. The Oscar 336 is available as a ground unit or complete unit on a trailer. The band wheels ride on a heavy-duty 1 ½” shaft supported by two pillow block bearings on each side of the wheel. This configuration distributes the pressure load evenly over the shaft to eliminate premature shaft or bearing failure. We believe so strongly in this we guarantee the main bearings and shafts for 6 YEARS!
CUTTING
-
Max Log Capacity36″ Diameter
-
Distance Between Guide32″
-
Max Thickness of Cut11″
-
Standard Track Length21′ / 3 – 7′ Sections
-
Log Dogs3 Cam Style Dogs & Square Posts
-
Max Log Length (with standard track)17′
-
Blade167 X 1.25 X .042″
-
Blade Lubrication5 Gallon
-
Track SweepsYes
POWER
-
Engine / Motor40 hp
-
Clutch EngagementCentrifugal
CONSTRUCTION
-
Frame4 Post with Lift Tubes
-
Bandwheels19″
-
Guide SystemDual Shoe Guides, 1 Adjustable
-
Lift SystemPower Lift System w/ Control
-
MeasuringDual Scale 1″and 4,5,6,8 Quarter
-
Main Bearings1.5″
WARRANTY
-
3-Year Limited WarrantyResidential Use
-
1-Year Limited WarrantyCommercial Use
-
6-Year WarrantyMain Shafts and Bearings
Price | $12,495.00 |
---|
