Brute EXT

$46,795.00
Call to Backorder
SKU
BRUTE-EXT-37

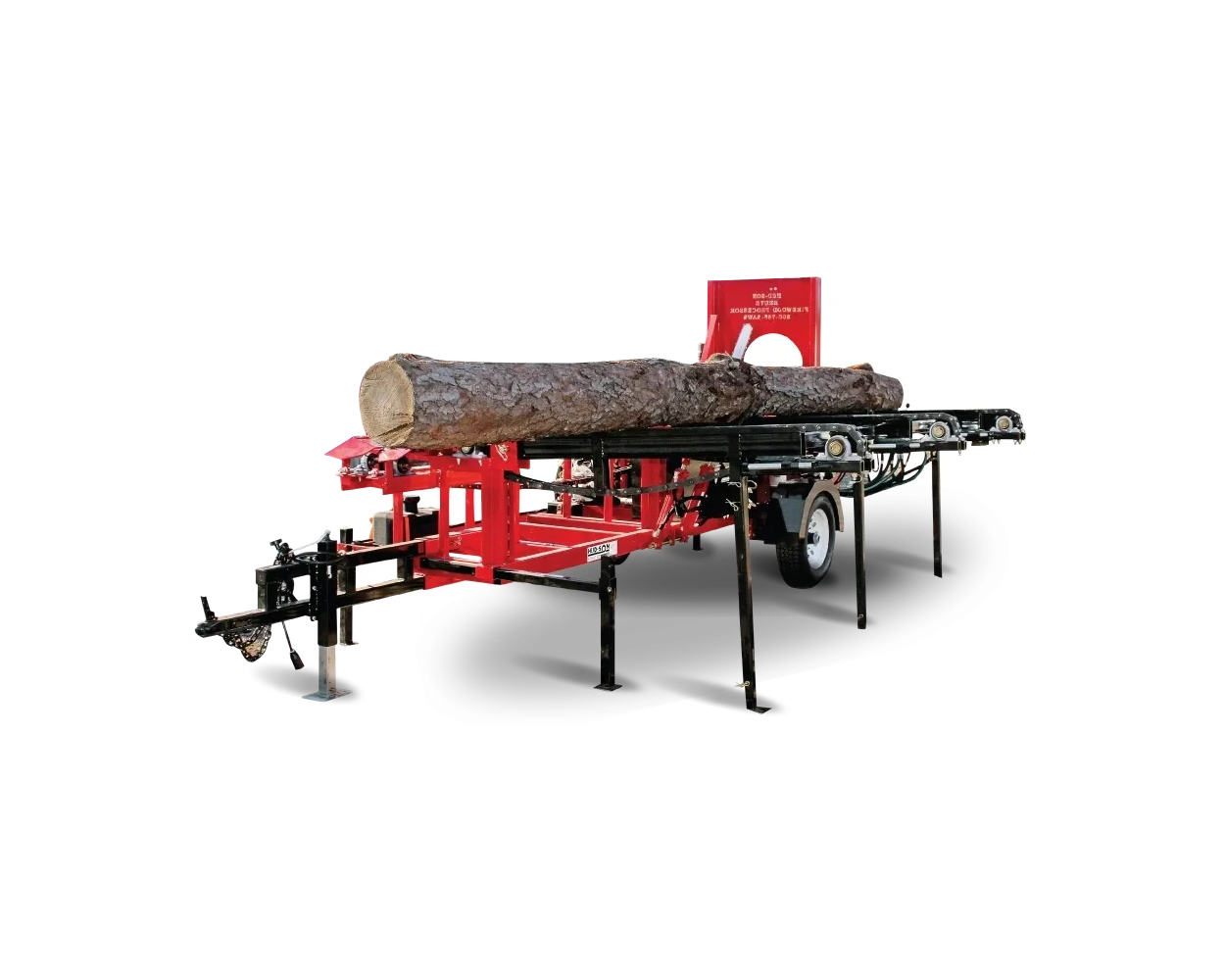

The Hud-Son Brute Firewood processor EXT for firewood production up to 20′ log lengths. The 22 gal/min pump runs the splitting cylinder and chainsaw motor, the 4 gal/min pump runs the feed decks. This allows you to feed the next cut in while the splitter is in the return mode which speeds up the process greatly. The bar oil tank is electronically activated to only oil the bar during cutting to reduce operation cost and extend bar life. Features include 35 HP Engine w/electric start (optional 37hp EFI), hydraulic log loader, hydraulic log feed, hydraulic log clamp, hydraulic saw, 20 inch diameter log capacity, 24 inch splitter w/auto cycle, 8 second cycle time, hydraulically adjustable 4-way wedge, dual hydraulic pumps, large reservoir tank, 2 inch trailer hitch, torsion axle, highway towable, built in hydraulic pressure gauge & hour meter, and an automatic oiler.

• Customers expressed the need for a processor that can handle longer logs
• We’ve added 4 extra feet & flattened the angle so more surface area on the log can contact the feed chain
• Three-strand on the live deck

STANDARD FEATURES

  • Log Loading
    14′ Chain Infeed
  • Live Deck
    3 Strand
  • Log Cutting
    Hydraulic Chainsaw 25″ Bar
  • Splitter
    “V” Style Self Centering Covered Push Plate
  • Wedge
    2 and 4 way Hydraulic Adjustable Wedge
  •

POWER

    • Engine / Motor
      35hp -Gas (Optional 37hp EFI)
    • Main Pump
      22GPM, Single Stage
    • Aux. Pump
      8 GPM

CAPACITIES

  • Log Length
    20′
  • Log Diameter
    20″
  • Splitter Stroke
    24″
  • Splitter Cycle Time
    8 seconds (Single Stage)
  • Measuring
    Set Spring Stick

WARRANTY

  • 1-Year Limited Warranty
    Commercial Use
  • 3-Year Warranty
    N/A

OPTIONS

  • 37HP EFI Motor
  • Wedge Option
    6 Way Wedge
More Information
Price $46,795.00
